| Tempat asal: | Cina |
| Nama merek: | ADMTECK |
| Sertifikasi: | CE |
| Nomor model: | PSDB |
| Kuantitas min Order: | 1 |
|---|---|
| Harga: | negotiable |
| Kemasan rincian: | Polyboard |
| Waktu pengiriman: | dua minggu |
| Syarat-syarat pembayaran: | 30% T / T di muka, 70% T / T sebelum pengiriman atau L / C atau Western Union |
| Menyediakan kemampuan: | 50sets / |
| Fitur: | Kontrol digital otomatis | Warna: | Hijau |
|---|---|---|---|
| Frekuensi catu daya: | 50/60Hz | Nama produk: | Bangku Uji Pompa Bahan Bakar |
| Tingkat Perlindungan: | IP54 | Silinder: | 6/8/12 |
| Kekuatan: | 5,5 kW/7,5 kW/11 kW/15 kW | Tegangan nominal: | Tegangan 415V/380V/220V |
| Menyoroti: | 12PSDB Bench pengujian pompa bahan bakar,IP54 Bench pengujian pompa bahan bakar,Bangku pengujian pompa bahan bakar kontrol digital |
||

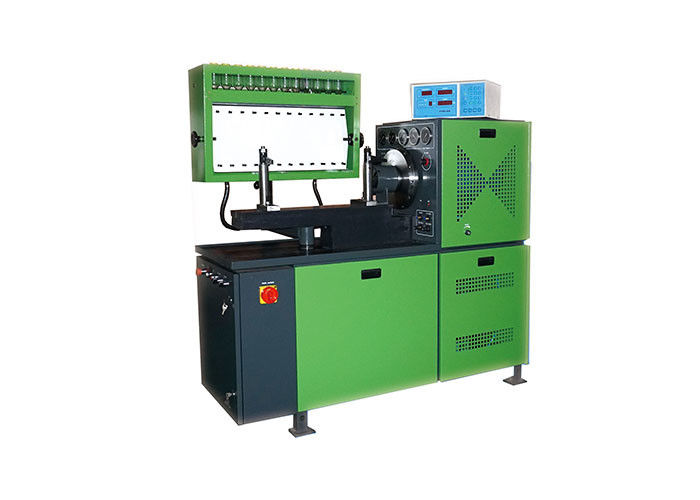

ADMTECK 12PSDB,Fuel Pump Test Bench, for testing different fuel pumps, different output power for option,with forced oil lubriion funtion
Quick Details
Technical specifiion:
1. Motor power:.5.5KW/7.5KW/11KW/15KW/
2. Power supply voltage:415,380,220v
3. Power supply frequency:50/60 HZ
4. Protection level:IP54
5. Speed range:0-4000 rpm
6. Counter setting range:0-9999
7. Temperature setting range:0-80°C
8. Center height of driving shaft:125mm
9. DC power:12/24V
10. Diameter of the Driving connector:120mm
11. Measuring tube:45ml,150ml,260ml(optional)
12. Number of Measuring cylinder:6,8,12
13. Oil Supply pump:10L/min
14. Oil supply pressure: High pressure:0-40bar;low perssure:0-4bar
15. Oil tank cubage:60L
16. Pressure meter: Low pressure:0-6bar;high pressure:0-60bar;inner pressure:0-16bar;Vacuum pressure:.1-2.5bar; Oil meter : 0-10bar
17. Heat Power:2kw
18. Temperature controlled range:30-65
19. Size:1600*960*1650mm
20. Weight:750kg
Function
1. Fuel delivered from each cylinder on any speed can be tested
2. Speed, temperature, counter, pressure, Rack meter can be displayed on the numeric unit of test bench.
3. Forced oil lubriion function (Optional)
4. Directly driven by motor, variable frequency stepless speed regulation
5. Static inspection on the delivery time of each cylinder
6. Inspection on Performance of the mechanical and pneumatic governor
7. Inspection on performance of the solenoid valve
8. Inspection on performance of the minus pressure of pneumatic governor
9. Inspection on the performance of the Pressure Compensator
10. Oil returned volume of distribute pump
11. Inspection on the Inner pressure of the VE pump
12. Inspection on the performance of the minus pressure of pneumatic governor
13. Inspection on Pump body sealing performance
Competitive Advantage:
Advantages with ranges of adjustment speed, stable speed, large torque, easy operation and so on.
